DeckStacker.DSDealCardsBaseAction Class Reference

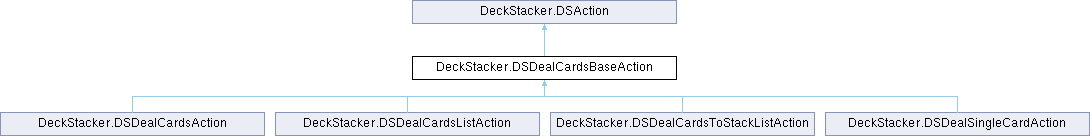

Inheritance diagram for DeckStacker.DSDealCardsBaseAction:

Public Member Functions
	DSDealCardsBaseAction (float dealDelay_=0f)
override void	Execute ()
Public Member Functions inherited from DeckStacker.DSAction
void	Execute ()
void	Resolve ()
string	PrintType ()

Protected Member Functions
void	AssignBoilerplateDealData (DSCard card)
Protected Member Functions inherited from DeckStacker.DSAction
void	LogAction (string actionMessage)

Protected Attributes
DSStack	_fromStack = null
DSStack	_targetStack = null
float	_dealDelay = 0f
DSCardPlacementInDeck	_stackPlacement = DSCardPlacementInDeck.Undefined
int	_stackExactPlacement = -1
int	_cardsInMotionThreshold = 4
Protected Attributes inherited from DeckStacker.DSAction
System.Type	_type = null
bool	_actionLogged = false

Properties
DSCardPlacementInDeck	stackPlacement [set]
int	stackExactPlacement [set]
int	cardsInMotionThreshold [set]

Detailed Description

Base abstract class for all Deal Cards actions.

Action code for "dealing" cards between stacks.
A "deal" is when a card is transferred from one stack to another.
Deal actions are designed to have a single origin stack, even when there are multiple target stacks

For optional properties:
Properites defined as "optional" will need to be set through a cached value.

1. Construct the DSDealCardsBaseAction derived object and save in a variable.
2. Set any desired optional properties after construction.
3. Then add the DealCards Action to the DSActionQueue, using DSActionQueue.AddAction().

Constructor & Destructor Documentation

DSDealCardsBaseAction()

DeckStacker.DSDealCardsBaseAction.DSDealCardsBaseAction ( float dealDelay_ = 0f )

inline

A common Constructor for all DSDealCardsBaseAction derived classes.

Member Function Documentation

AssignBoilerplateDealData()

void DeckStacker.DSDealCardsBaseAction.AssignBoilerplateDealData ( DSCard card )

inlineprotected

Boilerplate code for just about every DSDealCardsBaseAction derived class.
This will be called in Execute() methods.

Execute()

override void DeckStacker.DSDealCardsBaseAction.Execute ( )

abstract

To be overridden by derived classes.

Field Documentation

_cardsInMotionThreshold

int DeckStacker.DSDealCardsBaseAction._cardsInMotionThreshold = 4

protected

_dealDelay

float DeckStacker.DSDealCardsBaseAction._dealDelay = 0f

protected

The dealDelay is a clock that runs when a card is at the beginning of the DSCardMove.cardsWaitingToBeDealt queue. Each card will wait that amount of time, in seconds, before being moved to the cardsInMotion queue, which kicks off the card being transferred to its target stack and then moving to its new position in the target stack.

dealDelay is assigned on a per-card basis, but when cards are sent in a batch, the value is applied to all cards in the batch.

_fromStack

DSStack DeckStacker.DSDealCardsBaseAction._fromStack = null

protected

For DealCards Actions that require a stack to deal from.

_stackExactPlacement

int DeckStacker.DSDealCardsBaseAction._stackExactPlacement = -1

protected

Optional Property

This allows the cards to be dealt to a specified index position in the target DSStack.cards list.

_stackPlacement

DSCardPlacementInDeck DeckStacker.DSDealCardsBaseAction._stackPlacement = DSCardPlacementInDeck.Undefined

protected

Optional Property

This allows the cards to be dealt to a specified DSCardPlacementInDeck position in the target stack.

_targetStack

DSStack DeckStacker.DSDealCardsBaseAction._targetStack = null

protected

Most DealCards Actions require a target stack to deal to.

Property Documentation

cardsInMotionThreshold

int DeckStacker.DSDealCardsBaseAction.cardsInMotionThreshold

set

Optional Property

This property tells the card to wait until the DSCardMover.cardsInMotion list is a certain size before being moved out of cardsWaitingToBeDealt.
This has the effect of gradually splaying the cards out when a batch of cards has been dealt to a stack.

stackExactPlacement

int DeckStacker.DSDealCardsBaseAction.stackExactPlacement

set

Optional Property

This allows the cards to be dealt to a specified index position in the target DSStack.cards list.

stackPlacement

DSCardPlacementInDeck DeckStacker.DSDealCardsBaseAction.stackPlacement

set

Optional Property

This allows the cards to be dealt to a specified DSCardPlacementInDeck position in the target stack.

---

The documentation for this class was generated from the following file:

• DeckStacker/DSCore/Scripts/CoreActions/Cards/DealCards/DSDealCardsBaseAction.cs
