DeckStacker.DSButtonHandler Class Reference

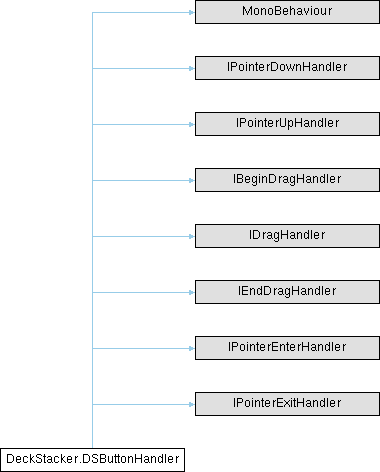

Inheritance diagram for DeckStacker.DSButtonHandler:

Public Member Functions
void	OnPointerDown (PointerEventData pointerEventData)
void	OnPointerUp (PointerEventData pointerEventData)
void	OnBeginDrag (PointerEventData pointerEventData)
void	OnDrag (PointerEventData pointerEventData)
void	OnEndDrag (PointerEventData pointerEventData)
void	OnPointerEnter (PointerEventData pointerEventData)
void	OnPointerExit (PointerEventData pointerEventData)

Properties
float	longPressTime [get]
UnityEvent	shortClickEvent [get]
UnityEvent	longPressEvent [get]
UnityEvent	startDragEvent [get]
UnityEvent	draggingEvent [get]
UnityEvent	endDragEvent [get]
UnityEvent	hoverEnterEvent [get]
UnityEvent	hoverExitEvent [get]

Detailed Description

This button handler script is a simple button implementation for UGUI Images.

Images should have Raycast Target enabled.

The advantage of DSButtonHandler is more variety in the inputs.
This implementation uses Unity's EventSystems to give click, hover, and drag events.

Member Function Documentation

OnBeginDrag()

void DeckStacker.DSButtonHandler.OnBeginDrag ( PointerEventData pointerEventData )

inline

Callback from IBeginDragHandler: Detect if a drag has started

OnDrag()

void DeckStacker.DSButtonHandler.OnDrag ( PointerEventData pointerEventData )

inline

Callback from IDragHandler: Detects if a drag has continued

OnEndDrag()

void DeckStacker.DSButtonHandler.OnEndDrag ( PointerEventData pointerEventData )

inline

Callback from IEndDragHandler: Detects if a drag has ended

OnPointerDown()

void DeckStacker.DSButtonHandler.OnPointerDown ( PointerEventData pointerEventData )

inline

Callback from IPointerDownHandler: Detect current clicks on the GameObject (the one with the script attached)

OnPointerEnter()

void DeckStacker.DSButtonHandler.OnPointerEnter ( PointerEventData pointerEventData )

inline

Callback from IPointerEnterHandler: Detects if a pointer has started hovering over this element

OnPointerExit()

void DeckStacker.DSButtonHandler.OnPointerExit ( PointerEventData pointerEventData )

inline

Callback from IPointerExitHandler: Detects if a pointer has exited hovering over this element

OnPointerUp()

void DeckStacker.DSButtonHandler.OnPointerUp ( PointerEventData pointerEventData )

inline

Callback from IPointerDownHandler, IPointerUpHandler: Detect if clicks are no longer registering

Property Documentation

draggingEvent

UnityEvent DeckStacker.DSButtonHandler.draggingEvent

get

Invoked by the OnDrag callback, when a pointer drag is ongoing.

endDragEvent

UnityEvent DeckStacker.DSButtonHandler.endDragEvent

get

Invoked by the OnEndDrag callback, when a pointer drag has ended, this frame.

hoverEnterEvent

UnityEvent DeckStacker.DSButtonHandler.hoverEnterEvent

get

Invoked by the OnPointerEnter callback, when a pointer has started overlapping this object, this frame.

hoverExitEvent

UnityEvent DeckStacker.DSButtonHandler.hoverExitEvent

get

Invoked by the OnPointerExit callback, when a previously overlapping pointer is exiting that overlap.

longPressEvent

UnityEvent DeckStacker.DSButtonHandler.longPressEvent

get

Pointer click events that exceed the longPressTime will invoke this UnityEvent.
\nInvoked in the Update() loop.

longPressTime

float DeckStacker.DSButtonHandler.longPressTime

get

The time between a pointer down event and pointer up event is measured. If the time is longer than this value, the pointer press is considered a "long press" instead of a "short click".

shortClickEvent

UnityEvent DeckStacker.DSButtonHandler.shortClickEvent

get

Pointer click events that are not long enough to be a "long press" will invoke this UnityEvent.
\nInvoked by OnPointerUp.

startDragEvent

UnityEvent DeckStacker.DSButtonHandler.startDragEvent

get

Invoked by the OnBeginDrag callback, when the beginning of a pointer drag has been detected.

---

The documentation for this class was generated from the following file:

• DeckStacker/DSCore/Scripts/Input/DSButtonHandler.cs
